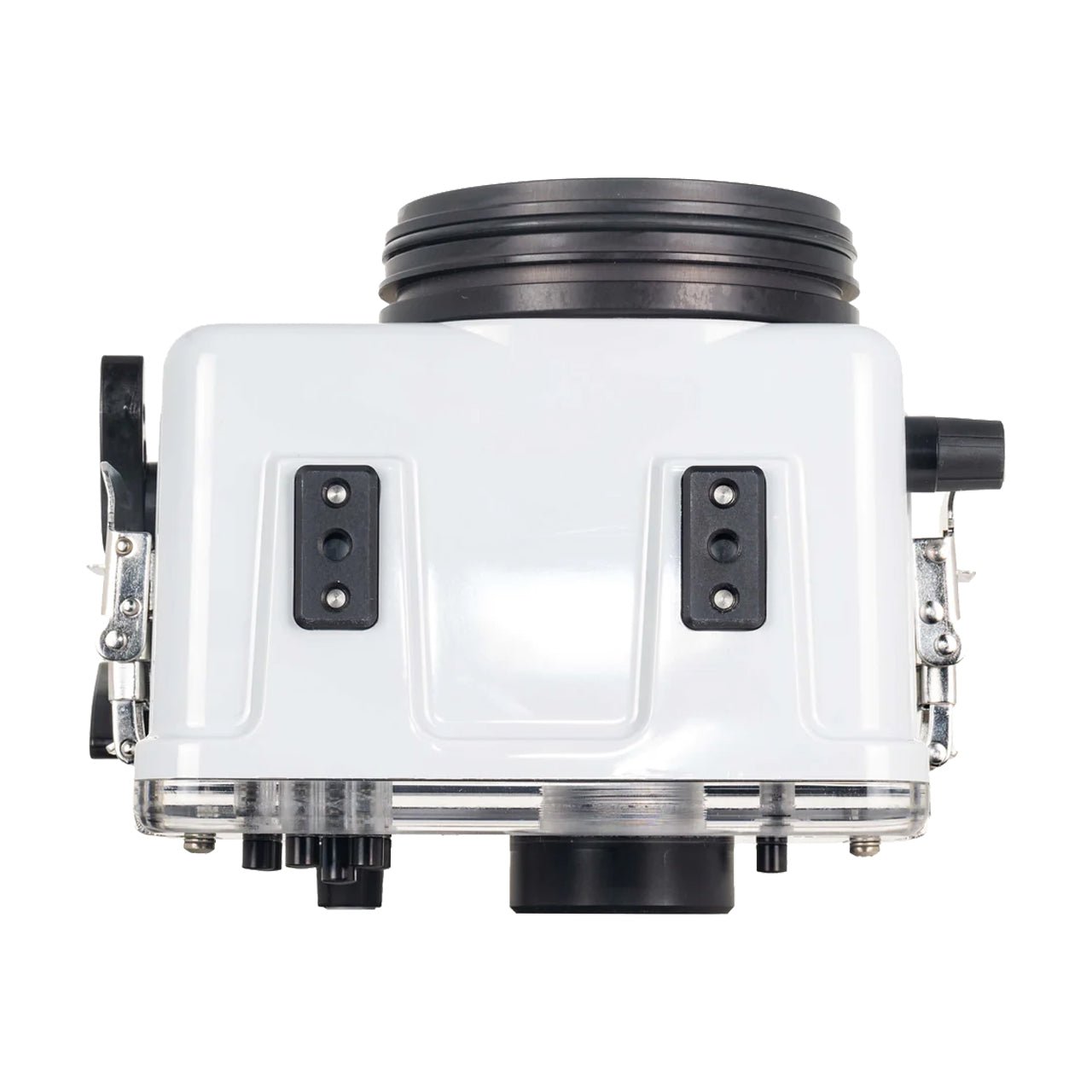

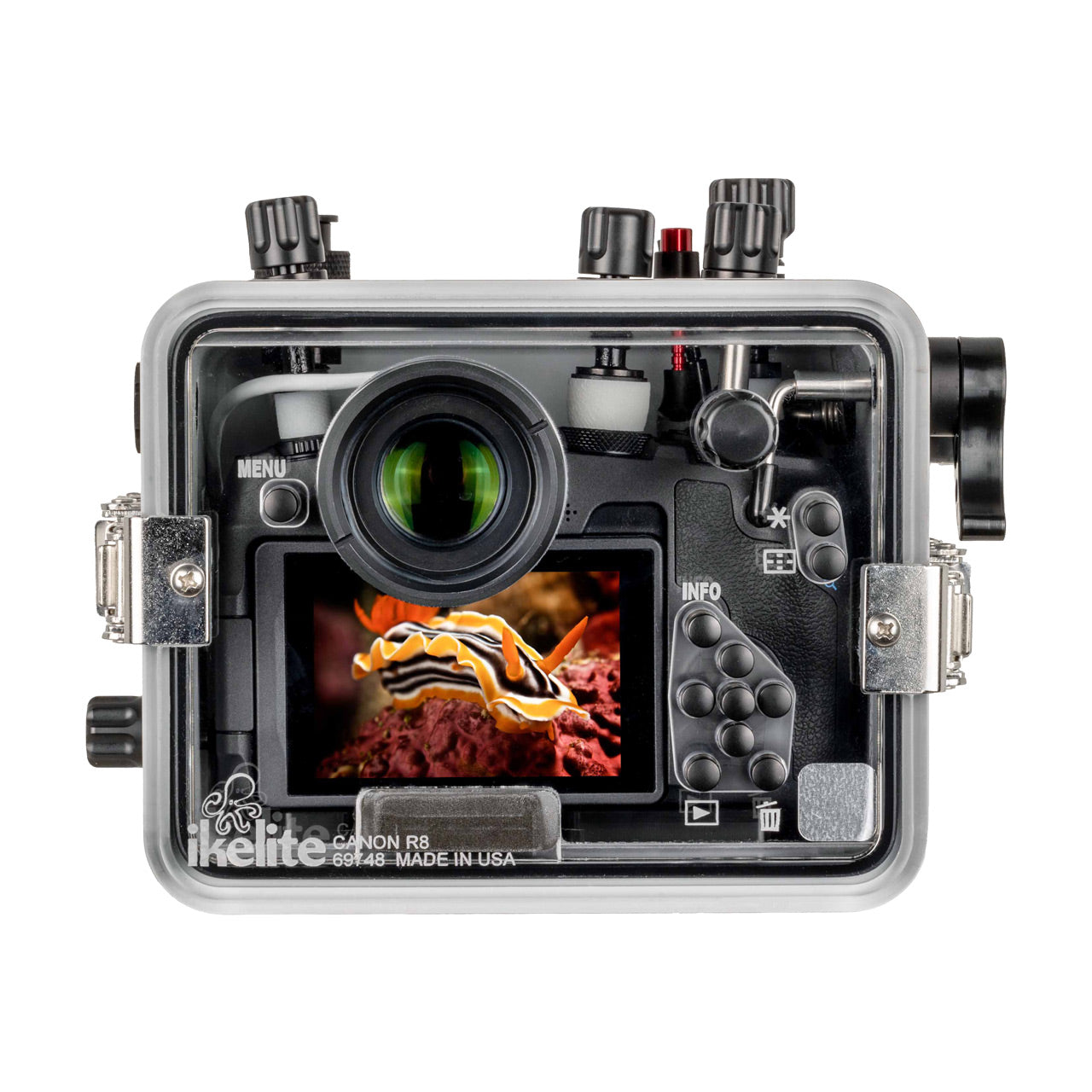

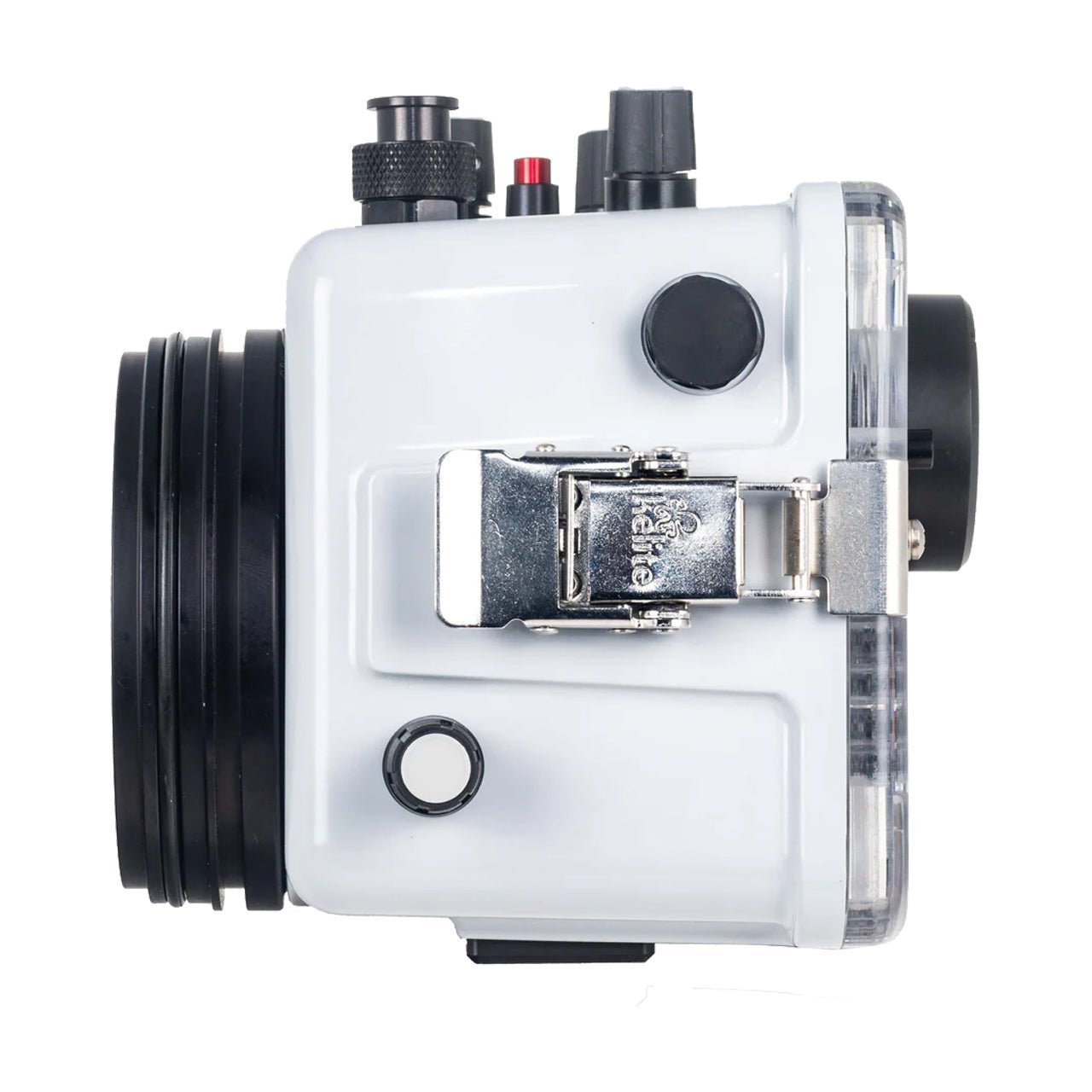

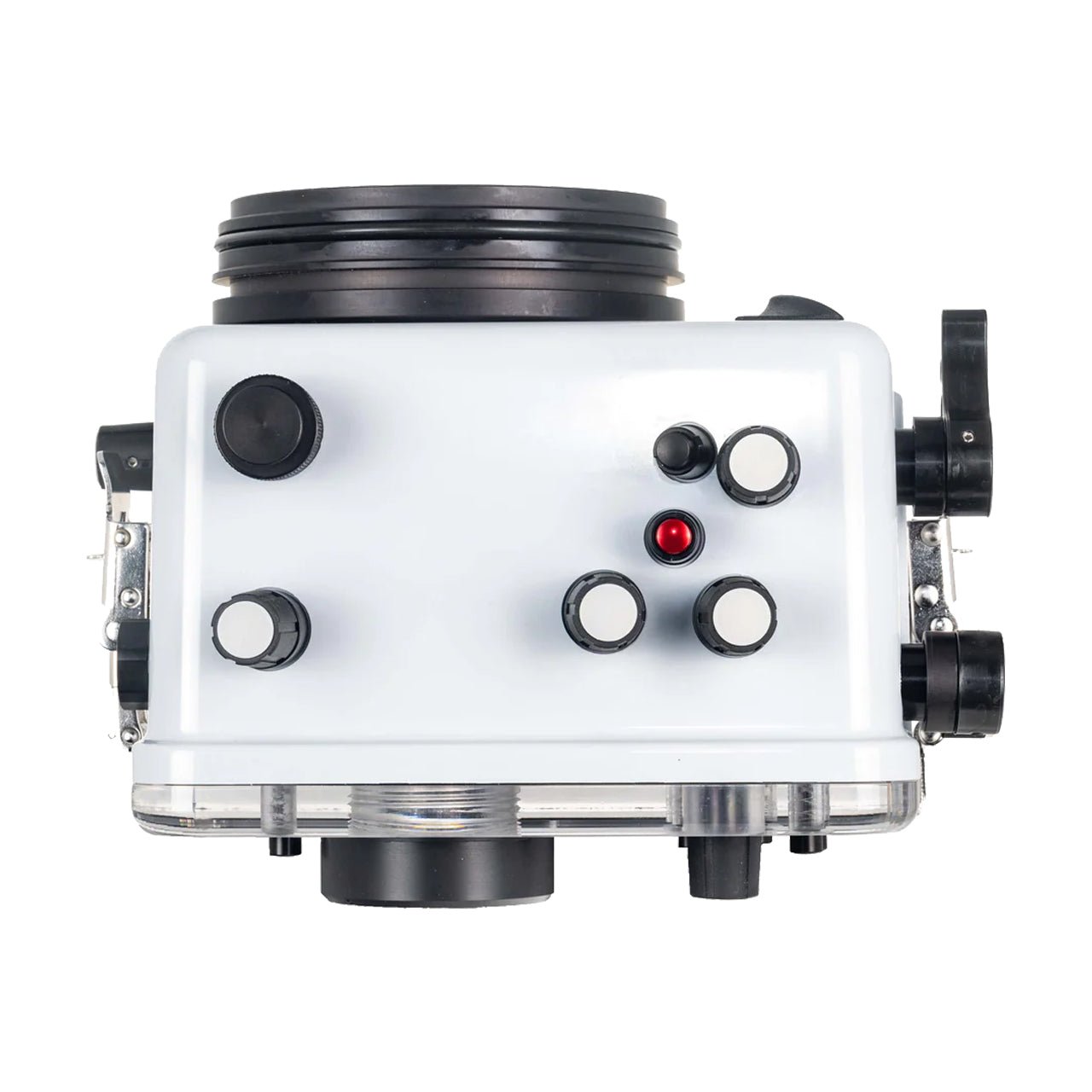

Ikelite Deluxe Underwater Housing Canon EOS R8

200DLM/D Underwater Housing for Canon EOS R8 – Deluxe Version with Handles & Vacuum System

The Deluxe 200DLM Underwater Housing for the Canon EOS R8 comes pre-configured with all the extras we recommend: dual tray with dual handles, trigger extensions, vacuum valve system, and a set of spare O-rings. This robust, feature-rich housing is ideal for scuba, snorkelling, surf, or pool use, and performs reliably in both recreational and professional underwater photography settings.

The housing is constructed from a custom ABS-PC blend, offering a lighter weight than aluminium while providing excellent durability and corrosion resistance.

DLM Lens Port Required

A compatible DLM (Dry Lock Micro) lens port is required for waterproof operation (sold separately). Be sure to select the correct port components based on your lens.

Overview

Controls: Controls are provided for everything except Diopter Adjustment Slider, Multi-Controller (can be pressed straight in), Depth-of-Field Preview Button, Focus Mode Switch
Strobe Connector: Ikelite Bulkhead with Manual Hotshoe
Port Mount: DLM (Dry Lock Micro)
Accessory Port: 1/2-20 Thread
Depth Rating: 60 metres (200 feet)
Weight: 1.4 kg (3 lb)
Dimensions: 19.1 x 15 x 15.2 cm (7.5 x 5.9 x 6 in)
Rear O-Ring: 0110
Front O-Ring: 0132.36

Construction

Crafted from a specially formulated ABS-PC blend, the housing is lighter than aluminium yet exceptionally durable. The white colour helps keep the camera cool during extended use in sunny and warm environments.

Pre-Dive Checks & Leak Detection

The open-groove design allows you to see the rear O-ring seal, ensuring it is properly positioned and ready to form a waterproof seal once the housing is closed. The included vacuum pump allows for easy leak testing before diving.

Lens Support

Ikelite lens ports are lightweight yet sturdy, capable of withstanding rough conditions in the water. The housing supports a wide variety of lenses, with zoom and focus gears available for popular zoom lenses and select focus rings. Lens ports and zoom gears are sold separately.

Wi-Fi Transfer

Use the built-in Wi-Fi of the Canon EOS R8 to wirelessly transfer photos to a nearby device while above water—ideal for reviewing shots between dives.

Compatibility

This housing is designed specifically for the Canon EOS R8 and is not compatible with other camera models. Add-on grips, battery grips, and eyepieces are not supported.

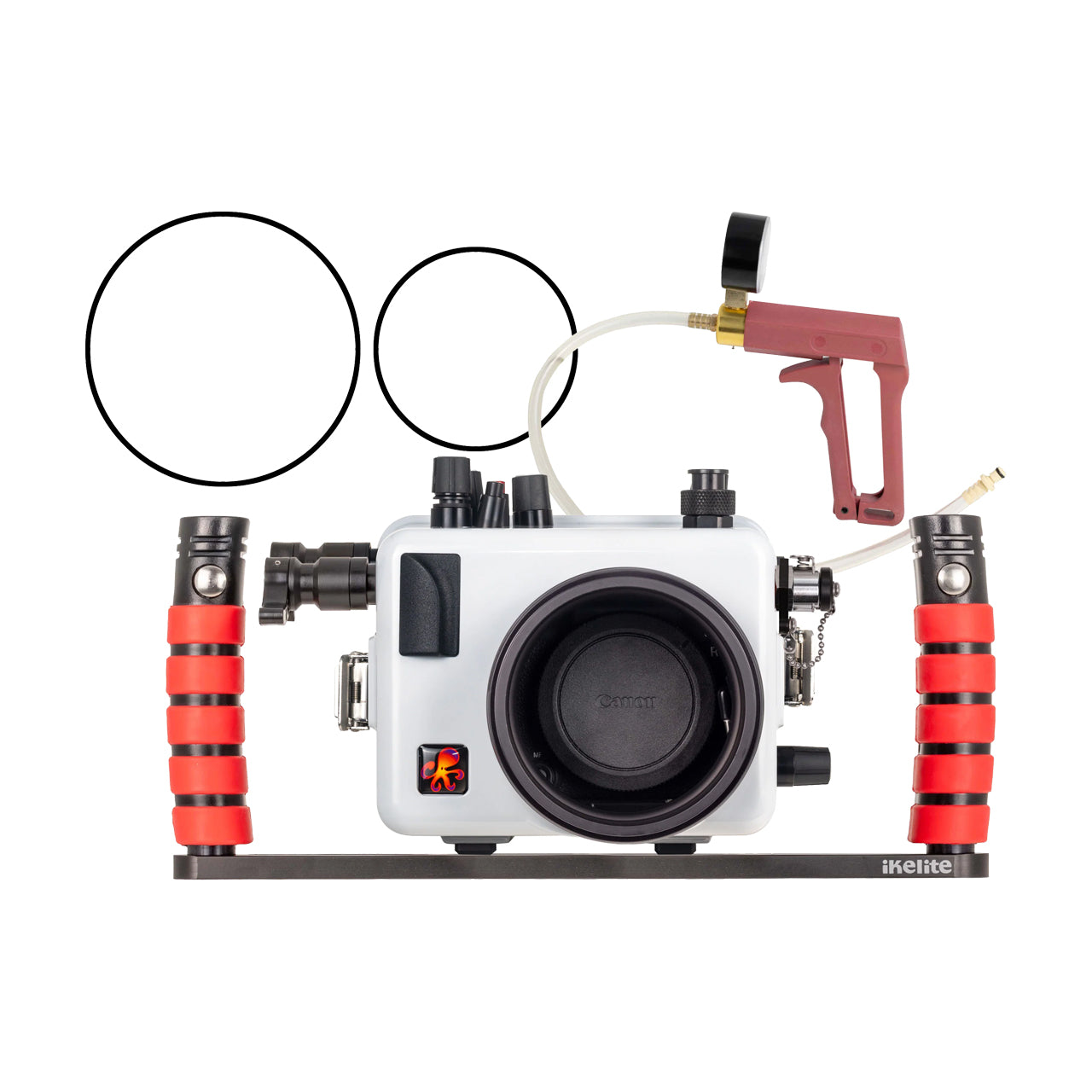

In the Box

• 200DLM/D Housing for Canon EOS R8
• Rear O-ring #0110 (installed + spare)
• Front O-ring #0132.36 (installed + spare)
• Waterproof bulkhead cap #9104.7 (installed)
• (2) Trigger extensions #4077.95 (installed)
• Vacuum valve (installed)
• Vacuum pump with gauge #47011
• Tray with dual handles #9523.64
• Silicone lubricant (1cc tube)
