Aquatica 20098 Nikon Z8 Housing with Vacuum Kit

Aquatica Underwater Housing for Nikon Z8 with Vacuum Kit

In our never-ending quest to offer the best possible gear for underwater photographers and videographers, we present the Aquatica housing for the Nikon Z8 mirrorless camera. Building on Aquatica’s reputation for premium quality at an affordable price, the AZ8 housing offers top-tier ergonomics, intuitive control access, and the legendary ruggedness of all-aluminum construction with a distinctive hard coating.

About the Camera

• 45.7MP FX-Format Stacked CMOS Sensor
• Lightweight Design – 30% Smaller than Z9
• 8.3K 60p N-RAW, 4.1K 60p ProRes RAW
• 8K30p and 4K120p Video, 10-Bit Internal
• Up to 20 fps Raw, 30 fps JPEG Shooting
• 493-Point AF with AI-Based Subject Detection
• Blackout-Free Real Live Viewfinder
• 3.2″ 4-Axis Tilting Touchscreen LCD
• CFx Type B & SD Memory Card Slots
• 5 GHz Wi-Fi and Bluetooth

About the Housing

As with all Aquatica housings, the AZ8 is CNC machined from 6061 T6 aluminum, treated with MIL-A-8625 anodizing, and finished with a baked-on, super-tough powder coat. Control shafts and push buttons are crafted from T304 stainless steel, ensuring unmatched durability.

The housing supports both Z-mount lenses and F-mount lenses via the Nikon FTZ adapter, which can be removed without dismounting the camera. Lens releases for both mounts are integrated, and all camera functions are accessible from outside the housing.

All controls are spring-loaded and self-centering where needed. Installing the camera is quick and easy—just attach the mounting tray and slide it into the stainless steel guide rails.

The included Surveyor Vacuum System (valve and pump) adds an extra layer of protection, allowing you to confirm a watertight seal before entering the water.

Specifications

• Part Numbers:
  • 20098-NK-VC: Dual Nikonos bulkheads & Surveyor vacuum circuitry
  • 20098-KM-VC: Single Ikelite bulkhead & Surveyor vacuum circuitry
  • 20098-OPT-VC: Dual optical bulkheads with LED trigger & Surveyor vacuum circuitry
• Composition: Aerospace-grade 6061 T6 aluminum with MIL-A-8625 anodized coating and baked-on abrasion-resistant powder coat; T304 stainless steel controls
• HDMI: Large 23.75mm (0.950 inch) HDMI bulkhead opening
• Depth Rating: 90m / 300ft (upgradeable to 130m / 450ft with deep spring kit)
• Weight: 3.29 kg / 7.25 lbs without handles
• Dimensions: 204mm x 267mm x 170mm (8.3” x 10.5” x 6.7”) without handles
• Port System: Compatible with all Aquatica DSLR-sized bayonet mount ports

Supported Accessories

• Aqua View and Aqua View 45 viewfinders
• Delta 3 Arm System
• 5HD Monitor
• Aquatica Close-Up Kit
• Aquatica Housing Lanyard Kit

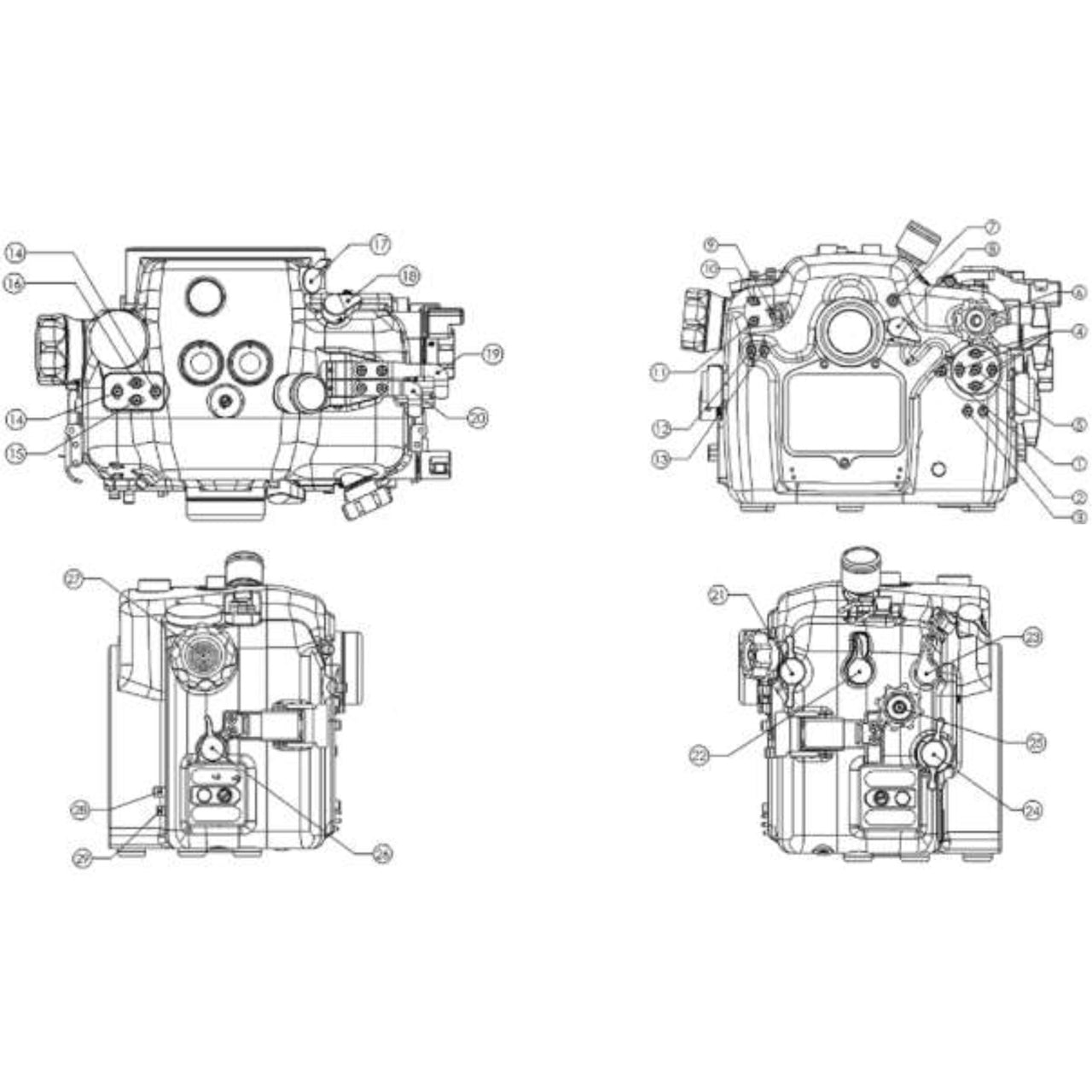

Control Layout

• “i” button
• Playback button
• Menu button
• Multi selector buttons
• OK button
• Main command dial
• DISP button
• Photo / Video selector
• Monitor mode button
• Delete button
• Protect button
• Playback zoom in button
• Playback zoom out / Thumbnails button
• Release mode button
• Exposure mode button
• Bracketing button
• Housing port release
• Power switch
• ISO button
• Record button
• AF-ON button
• Exposure compensation button
• Shutter-release button
• FN1 / FN2 button
• Sub-command dial
• Focus mode button
• Zoom / Focus wheel
• FTZ adapter lens release button
• Lens release button
