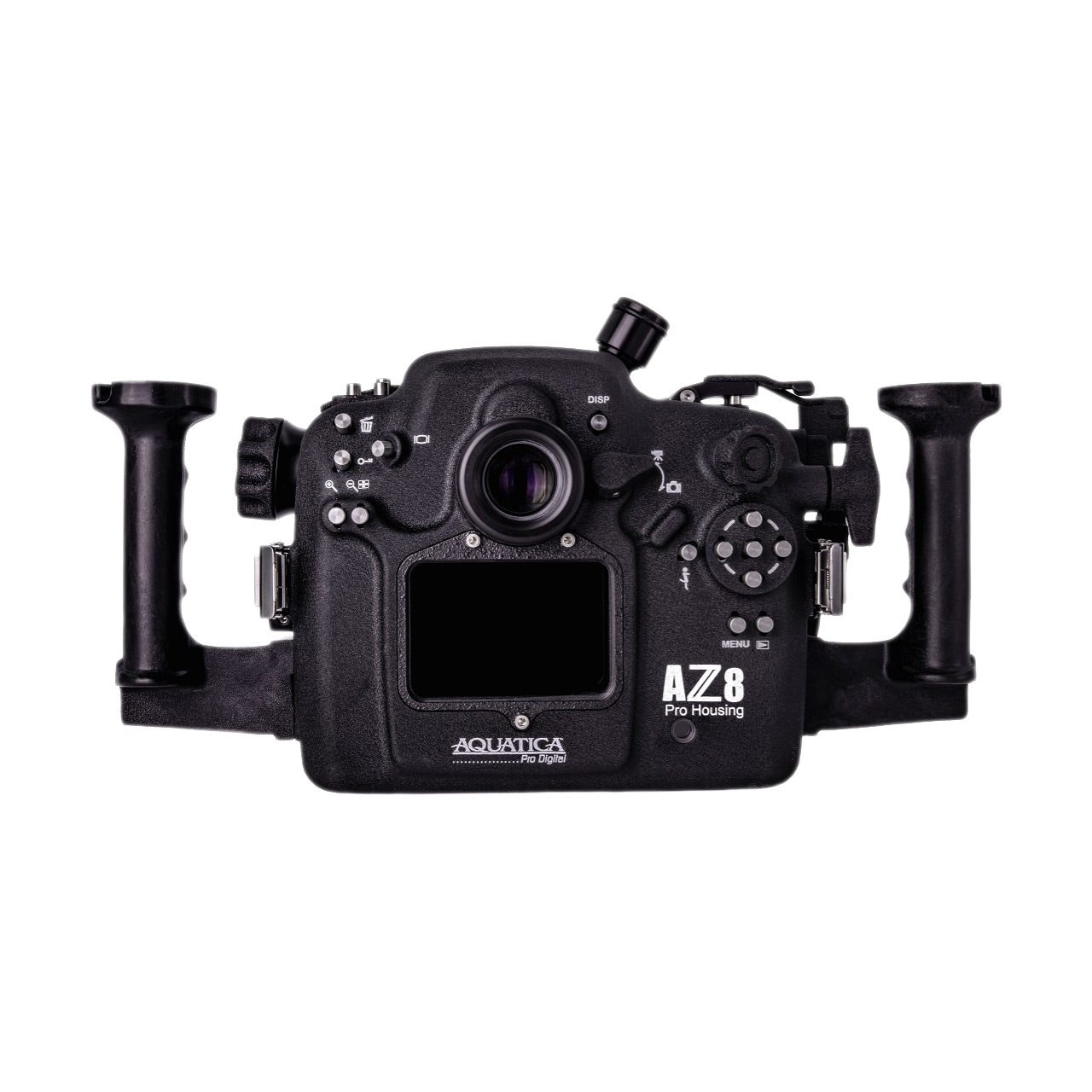

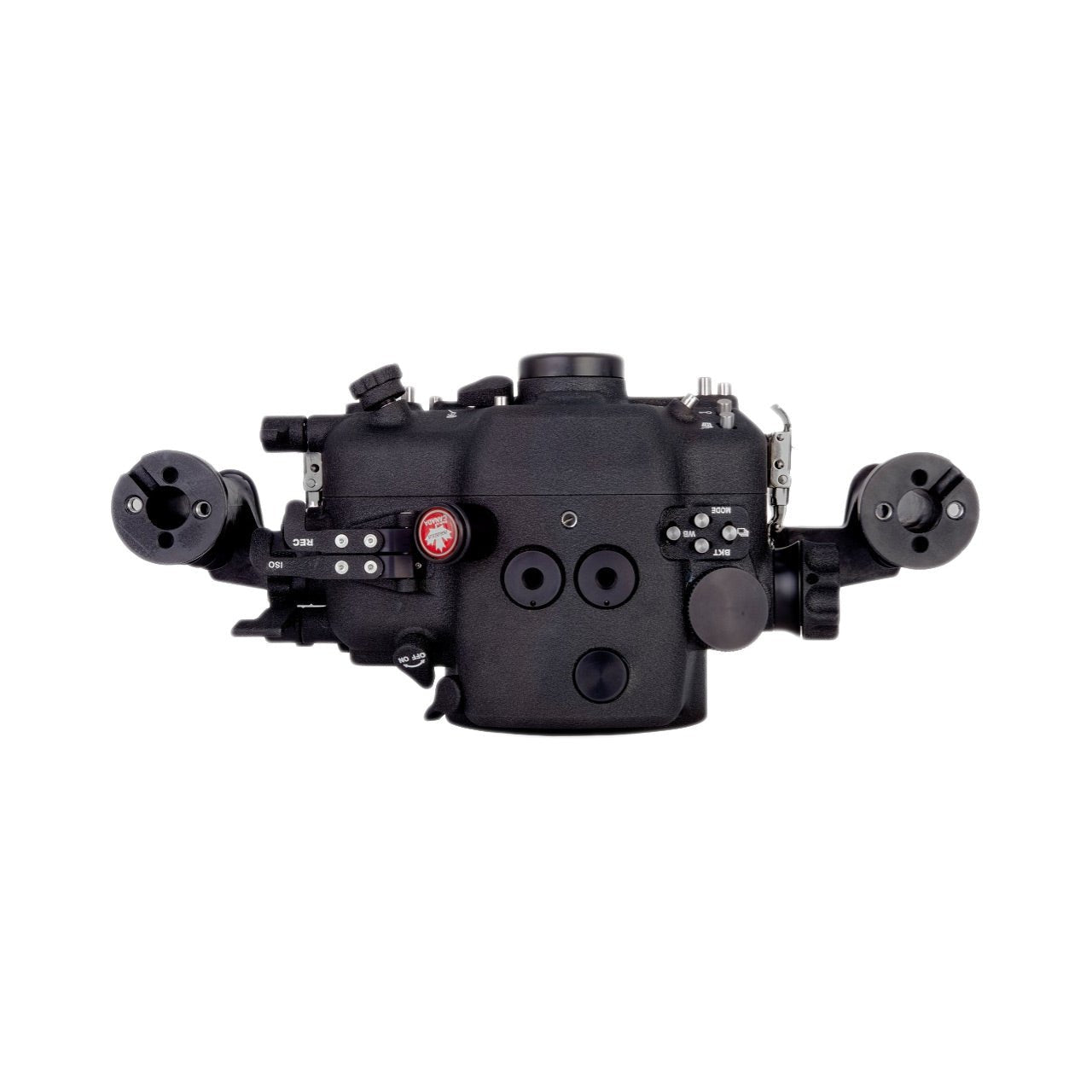

Aquatica Nikon Z8 Housing with Vacuum Kit & Optical Bulkheads

Aquatica Underwater Housing for Nikon Z8 with Vacuum Kit

In our never-ending quest to offer the latest and greatest equipment to underwater photographers and videographers, we are proud to offer the Aquatica housing for the Nikon Z8 mirrorless camera. Built with Aquatica’s signature premium quality at an affordable price, the AZ8 housing offers refined ergonomics, full control accessibility, and the rugged durability of all-aluminum construction with a distinctive hard coating.

About the Camera

• 45.7MP FX-Format Stacked CMOS Sensor
• Lightweight Design – 30% Smaller than Z9
• 8.3K 60p N-RAW, 4.1K 60p ProRes RAW
• 8K30p and 4K120p Video, 10-Bit Internal
• Up to 20 fps Raw, 30 fps JPEG Shooting
• 493-Point AF with AI-Based Subject Detection
• Blackout-Free Real Live Viewfinder
• 3.2″ 4-Axis Tilting Touchscreen LCD
• CFx Type B & SD Memory Card Slots
• 5 GHz Wi-Fi and Bluetooth

About the Housing

As with all Aquatica housings, the AZ8 is CNC machined from 6061 T6 aluminum and treated with a MIL-A-8625 anodized coating, then finished with a baked-on, extra-tough powder coat paint. Control shafts and push buttons are made from T304 stainless steel, ensuring the housing can withstand harsh conditions and extended use.

The AZ8 housing supports Nikon Z-mount lenses and the FTZ adapter. You can remove the adapter from the camera without removing the camera from the housing. Lens releases for both F and Z mounts are included. All camera functions are fully accessible from the housing.

Spring-loaded, self-centering controls and stainless steel guide rails make camera installation simple and secure. Mount the tray on the camera and slide it into place with ease.

To protect your gear, the AZ8 includes the Surveyor Vacuum System (valve and pump) as standard. This system allows users to perform leak checks prior to dives, offering added peace of mind.

Specifications

• Part Numbers:
  • 20098-NK-VC: Dual Nikonos bulkheads & Surveyor vacuum circuitry
  • 20098-KM-VC: Single Ikelite bulkhead & Surveyor vacuum circuitry
  • 20098-OPT-VC: Dual optical bulkheads, LED trigger & Surveyor vacuum circuitry
• Composition: 6061 T6 aluminum with MIL-A-8625 anodized coating and abrasion-resistant powder coat; T304 stainless steel controls
• HDMI: Large 23.75mm (0.950") HDMI bulkhead opening
• Depth Rating: 90m / 300ft (upgradeable to 130m / 450ft with deep spring kit)
• Weight: 3.29 kg / 7.25 lbs (without handles)
• Dimensions: 204mm x 267mm x 170mm (8.3” x 10.5” x 6.7”) without handles
• Port System: Compatible with all Aquatica DSLR-sized bayonet mount ports

Supported Accessories

• Aqua View and Aqua View 45 viewfinders
• Delta 3 Arm System
• 5HD Monitor
• Aquatica Close-Up Kit
• Aquatica Housing Lanyard Kit

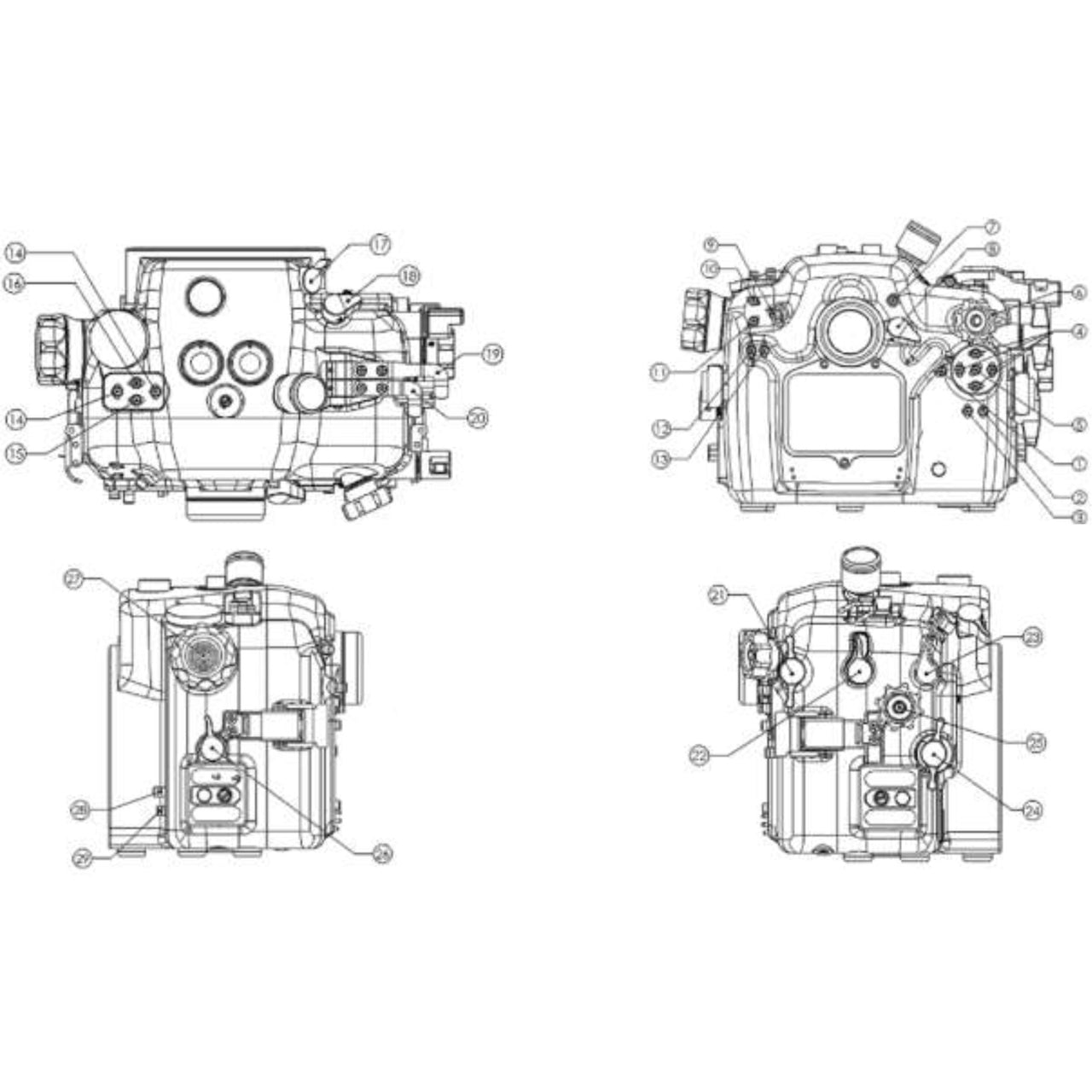

Control Layout

• “i” button
• Playback button
• Menu button
• Multi selector buttons
• OK button
• Main command dial
• DISP button
• Photo / Video selector
• Monitor mode button
• Delete button
• Protect button
• Playback zoom in button
• Playback zoom out / Thumbnails button
• Release mode button
• Exposure mode button
• Bracketing button
• Housing port release
• Power switch
• ISO button
• Record button
• AF-ON button
• Exposure compensation button
• Shutter-release button
• FN1 / FN2 button
• Sub-command dial
• Focus mode button
• Zoom / Focus wheel
• FTZ adapter lens release button
• Lens release button
